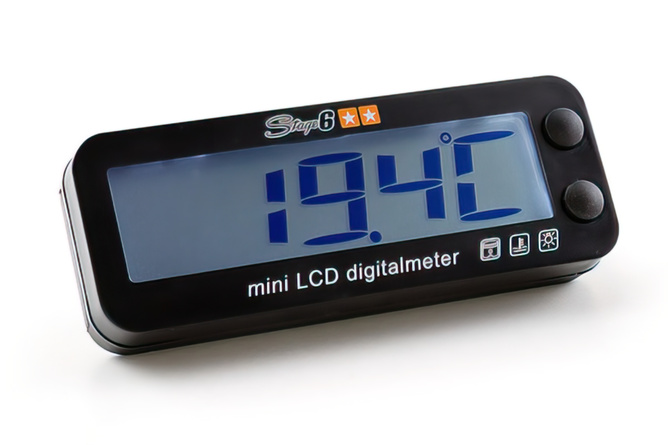

STAGE6 TACHOMETER / TEMPERATURE MINI MK2

Stage6 has introduced an upgraded and enhanced version of their renowned mini tachometer/rev counter, the MKII. This device is an essential tool for fine-tuning engines and variators.

Featuring a compact design and a user-friendly digital interface with blue backlighting, the Stage6 MKII Mini Tachometer provides highly accurate engine speed readings within a narrow tolerance range of just 10rpm, making it an ideal addition to any dashboard.

Key features of the Stage6 MKII Mini Tachometer include:

- Tachometer with a range of 0 - 20,000 rpm
- Engine temperature display covering a range of 0 – 250°
- Overheat alarm adjustable between 60 - 250°
- Over-rev alarm functionality
- Maximum rpm memory
- Engine run time tracking

An intuitive blinking display serves as an alert for overheating and over-revving, with manual adjustment capabilities for the alarm settings.

The tachometer offers a 5-step adjustment for backlighting, requiring connection to an external 12V supply (such as a scooter battery) for the backlight to function properly.

Mounting the tachometer is quick and straightforward using the ignition wire.

The included temperature sensor features a PT 1/8 thread, compatible with the cylinder heads of all Minarelli engines. Separate temperature sensors tailored to other engine types (Piaggio, Peugeot, Derbi, AM6, etc.) are available separately. Additionally, temperature sensors suitable for integration into cooling hoses or for use with air-cooled cylinders are also offered.

For optimal performance, it's recommended to use a high-quality resistor spark plug to suppress interference and minimize rpm reading errors.

Dimensions: 90x33x15mm
Weight: Approximately 350g
Internal Battery: CR2032 3V
