2FAST 100CC CYLINDER 47MM/95MM RABASA EURO3

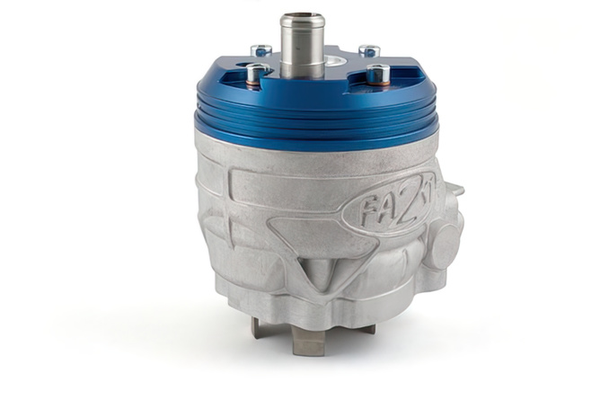

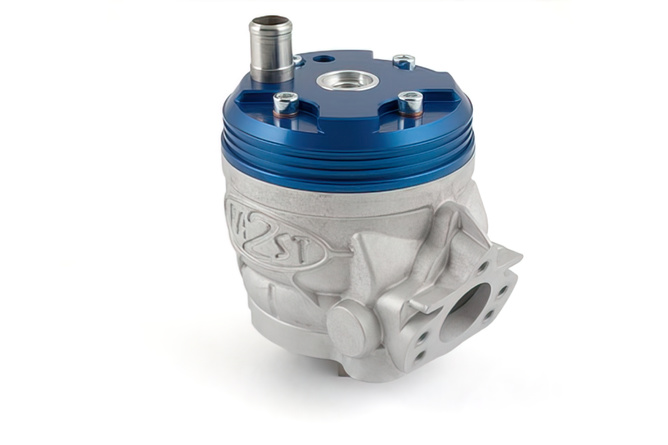

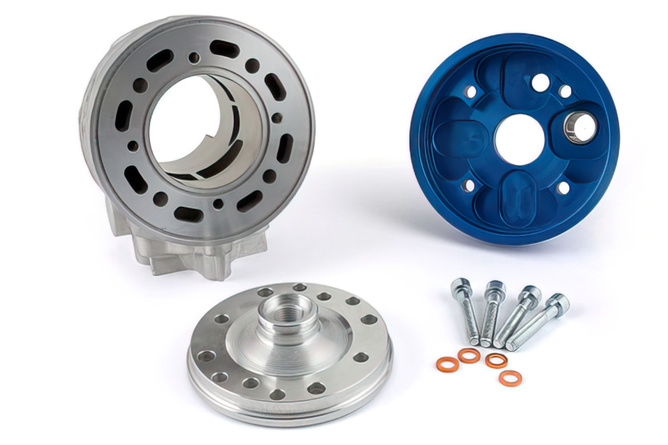

2Fast has firmly established its position on the automatic scooter market and is now venturing out onto the market for 50cc bikes. The 2Fast Cylinder Kit 100cc Derbi Euro 3 (D50B0) is a high-end aluminium cylinder with a very resistant Nikasil coating accompanied by 2Fast's famous anodized blue cylinder head. It has 6 transfer ports and bridged exhaust port, Bore diameter is 52mm (Big Bore).

The cylinder has to be used with a crankshaft with 47mm stroke and 95mm connecting rod; this will add up to a powerful displacement of 100cc. The cylinder provides the option to mount different exhaust types, with 2-hole or 3-hole flanges.

• aluminium cylinder, 52mm bore
• 1-ring piston, 14mm pin
• 47mm stroke, 95mm connecting rod
• aluminium cylinder head, 2mm clearance
• compression 1:16
• crankcase milling is necessary
• not street-legal

Note: You will also need 100/101mm long cylinder studs.
